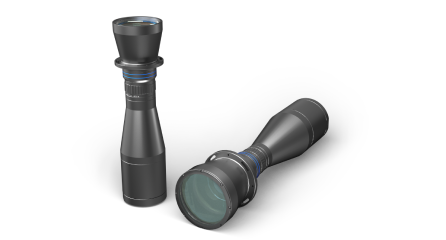

Rhino Series Bi-Telecentric Lenses

• The modular design offers field-of-view sizes from Ø36 mm to Ø150 mm, adapting to various workpiece inspection needs.
• The bi-telecentric design eliminates perspective and focus errors, ensuring accurate inspection and true-to-size object rendering.
• Large aperture design supports cameras with sensor sizes from 1/2.5" to Ø82 mm feature with high resolution and wide compatibility.

Specification Explanation
1.Working Distance (WD): The distance from the front of the lens to the object.
 2.Aperture F/#: The actual working F/# of the telecentric lens.
 3.Depth of Field: For a telecentric lens, the depth of field is estimated using the following formula:
 F/#: The actual working F-number of the lens.
 P: Sensor pixel size (5.5 μm for this calculation).
 β: Lens magnification.
 k: Dimensionless parameter based on the application; for measurement applications, k = 0.008 is used, but 0.015 can also be considered for calculation.
 4.The depth of field at the nominal edge can still be used for measurement, but to achieve a clearer image, it is recommended to use half of the nominal depth of field.
 5.Interchangeable Interface Accessories: Lenses marked with an asterisk (*) support the following optional interfaces:
OPT-RNxxxxxx-xxx-xxx287M42: Optional interfaces: M58, F-mount.
OPT-RNxxxxxx-xxx-xxx432M58: Optional interfaces: M42, M58, F-mount.
OPT-RNxxxxxx-xxx-xxx620M72: Optional interfaces: M42, M58, F-mount, M72.
OPT-RNxxxxxx-xxx-xxx820M90: Optional interfaces: M72, M90, M95.
