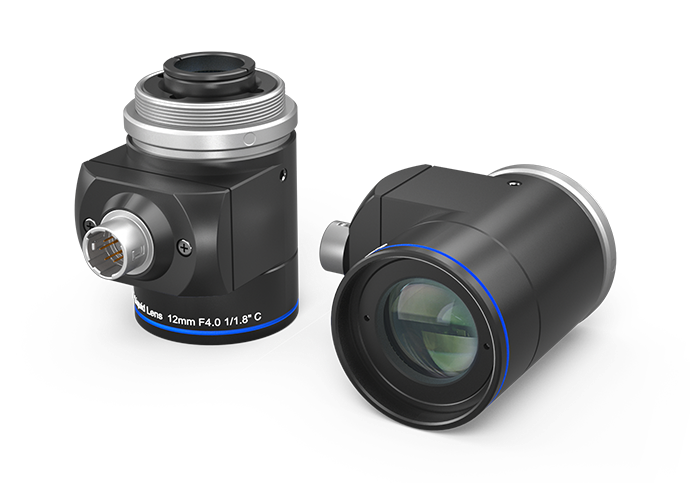

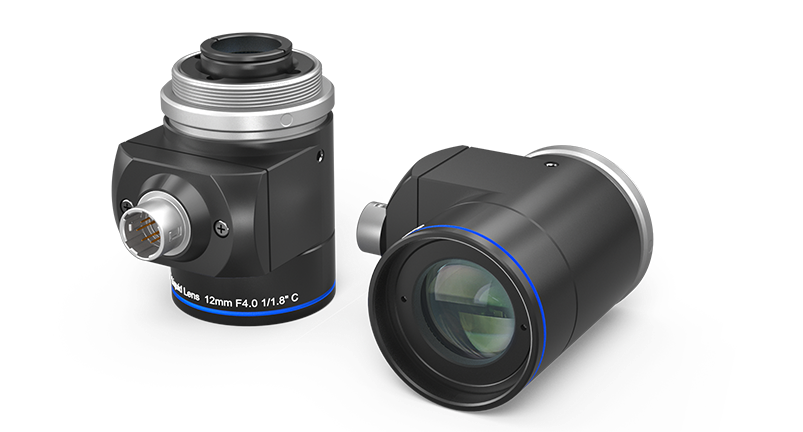

Cobra Series Liquid Fixed Focal Length Lense

Introduction

  • Faster focus

Can achieve dynamic autofocus, response time <4 ms, focus can be completed almost instantly.

  • High resolution

The highest resolution is 145lp / mm, can match 3.45μm image size, maximum compatible with 2 / 3 ″ chip size camera [1] , focal length of 8 mm to 50 mm optional.

  • Repeatability stability
The repeated adjustment of the liquid lens can be kept at + / -0.1 dpt.
  • Phase adjustable up to 360°
The liquid lens digital I/O interface can rotate around the light by 360°,better accommodating applications with limited space.

 [1] The sensor size of applicable cameras to OPT-COB0840-LQL and OPT-COB1240-LQL is up to 1/1.8''.





  • Product List
