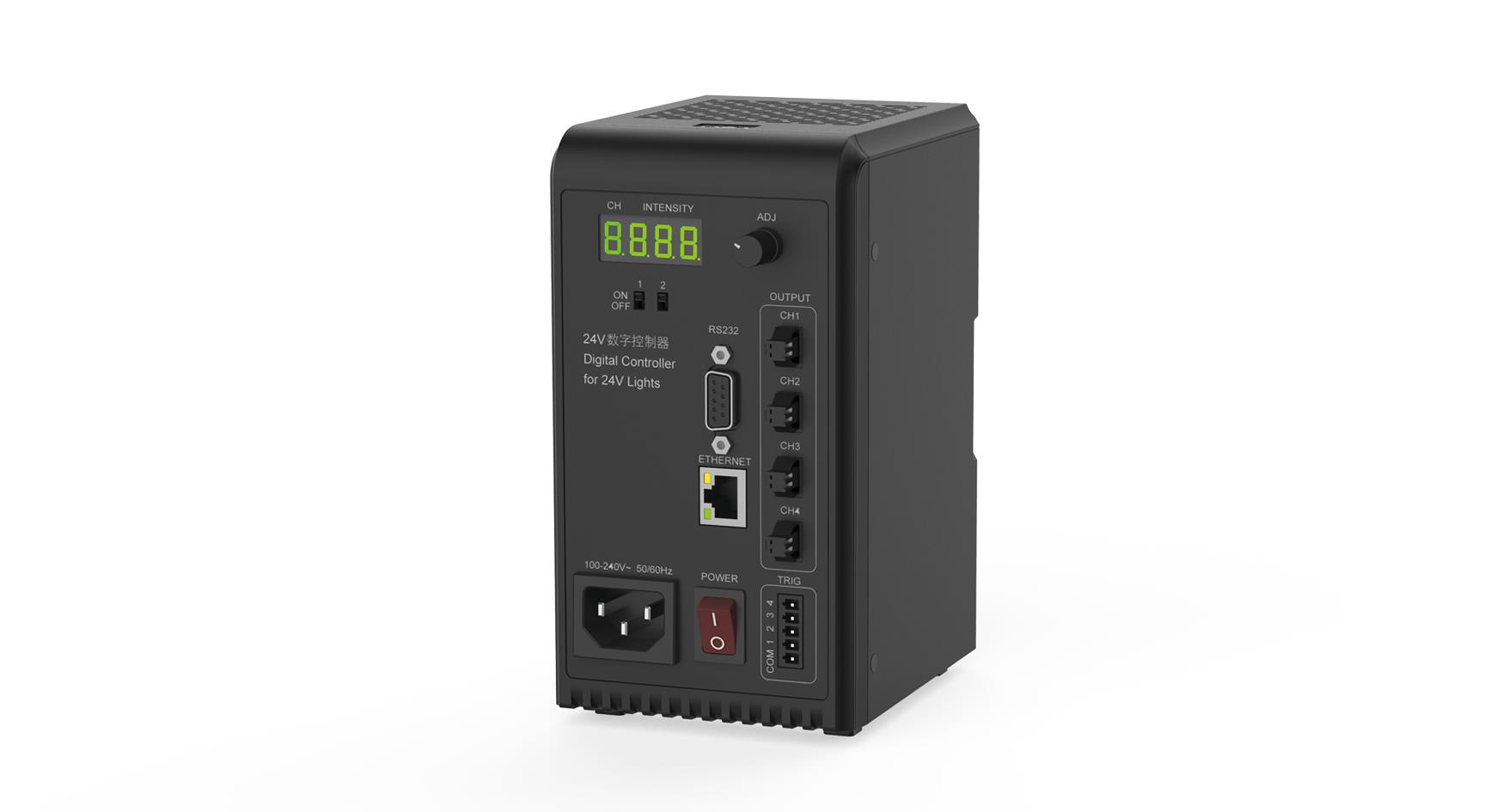

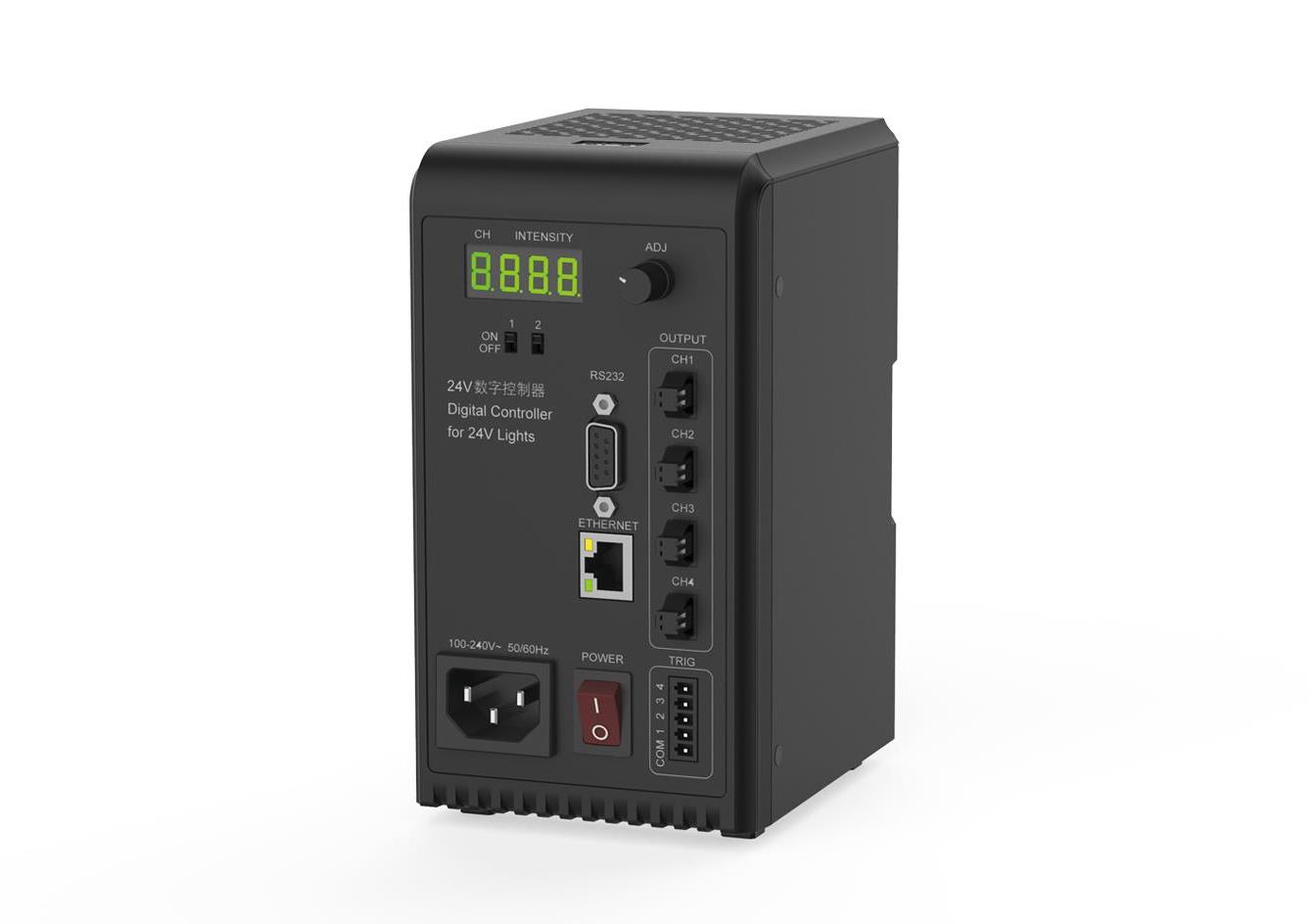

Digital Current Controller

• Handles trigger frequencies up to 20kHz.
• Manual max. output current adjustment.
• Enables simultaneous multi-channel communication.
• Easy mounting with screws or DIN rail compatibility.
• 256-level light intensity control for precise adjustments.
• Autosense™ technology with ≤20μs trigger response time.
• RS232 and 100Mb Ethernet interfaces for seamless integration.
• Supports up to 64 programmable steps, each configurable with intensity, pulse width, and trigger source.
• External trigger input (e.g., camera trigger signal) for synchronized light strobes and sequences. (Strobe mode extends light source lifespan.)

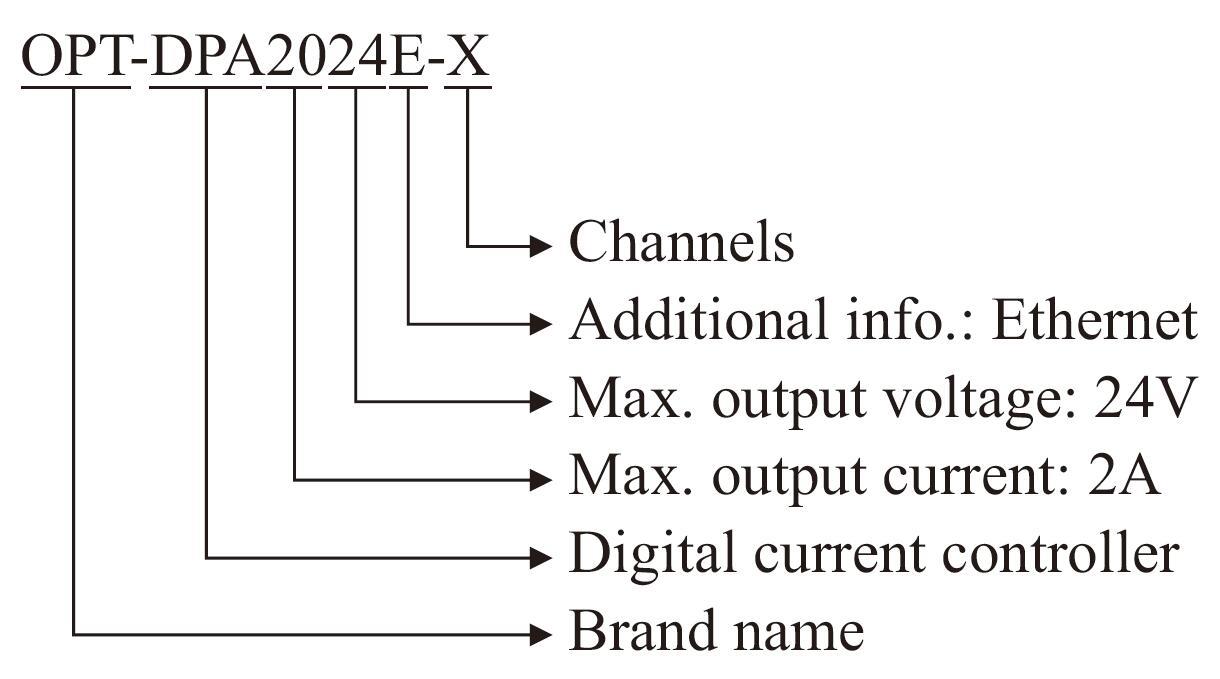

Selection Guide
