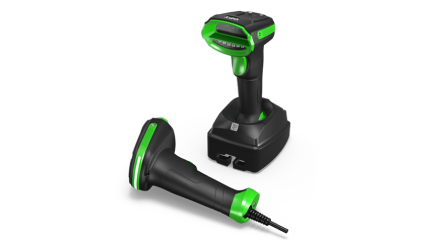

Smart Code Readers

Series R1

Introduction

  • The design features detachable cables for easy replacement and use.
  • Compact and lightweight design for a more comfortable user experience.
  • Includes various decoding indicators such as a buzzer, vibration, and indicator lights.
  • Offers diverse communication interfaces, supporting Ethernet, Serial, USB ports, and more.
  • Includes intelligent auto-tuning functionality, allowing for one-click parameter setting and easy installation and debugging.
  • High-sensitivity image sensor with rapid response to light changes, ensuring clear recognition even in low-light environments.
  • Supports TCP, UDP, Serial, Ethernet/IP, Modbus, Profinet, FTP, HTTP, MC, Fins, and more transmission protocols easy system integration.
  • Built-in machine learning code reading algorithm, effectively recognizing all types of barcodes and QR codes, even when it is dirty or damaged.


Selection Guide

OPT-IDR1 M010 G- L 04- 5 2 1- W
1 2 3 4 5 6 7
No. Symbolize Descriptions
1 Resolution(H×V)/(MP)  010:1280 x 800(1MP)
2 Sensor Type  G:CMOS, Global
3 Focal Length(mm)  04:4.22mm
4 LED Light Color  5:Red and Blue Combined Light
5 Lens Cover  2: Semi-polarizing lens cover
6 LED Light Type  1: Standard Light Source
7 Communication Interface  E:Ethernet
 U:USB
 S:Serial Port
 W:WiFi
