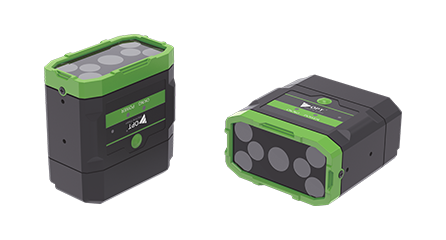

Smart Code Readers

Series S2

Compact industrial design: Allows flexible installation in a wide range of applications.
Auto-tuning setup: One-click parameter optimization for fast installation and configuration.
Flexible connectivity: Ethernet, serial, USB, and digital I/O for efficient device communication.
Optical accessory support: Works with polarizers, diffusers, and multi-wavelength lighting to handle ambient light and material variations.
High-intensity LED targeting: Clearly marks the field of view for quick alignment and calibration.
Rugged housing: Withstands extreme temperatures, dust, moisture, and harsh industrial conditions.
Protocol support: Supports TCP, UDP, Serial, Ethernet/IP, Modbus, Profinet, FTP, HTTP, MC, and FINS for easy control-system integration.
Machine-learning decoding: Accurately reads barcodes, QR codes, curved surfaces, and high-density DPM codes—even when dirty or damaged.
Machine-learning OCR: Automatically detects and recognizes over 7,000 Chinese and English characters with high accuracy.

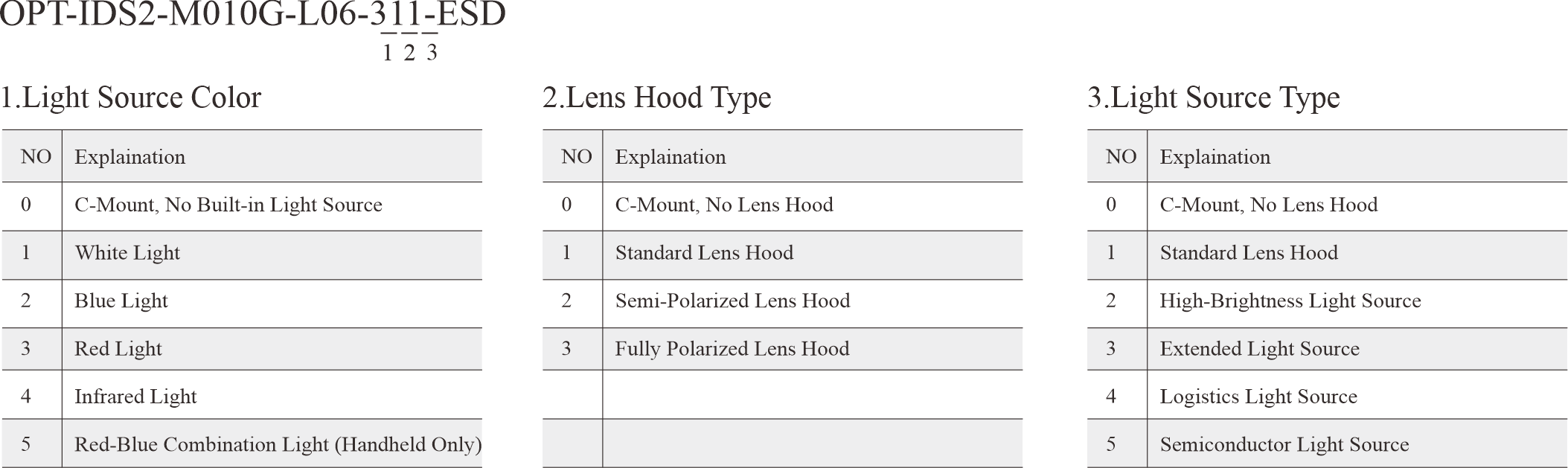

Selection Guide

OPT-IDS2		M010	G-	L	06-	3	1	1-	ESD
		1	2		3	4	5	6	7
No.	Symbolize		Descriptions
1	Resolution(H×V）/(MP)		010: 1280 x 800（1MP） 023: 1920 x 1200（2.3MP）
2	Sensor Type		G: CMOS, Global
3	Focal Length(mm)		06: 6.72mm
4	LED Light Color		1: White 2: Blue 3: Red
5	Lens Cover		1: Standard Lens Cover 3: Full Polarizing Lens Cover
6	LED Light Type		1: Standard Light Source
7	Communication Interface		ESD：Ethernet port + Serial port + DIO U：USB
