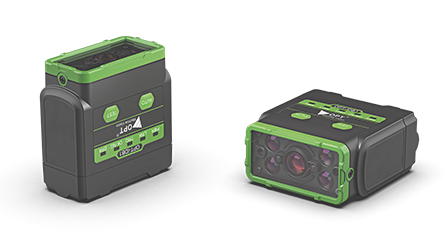

Series B1

Introduction

  • Space-saving form factor adaptable to various equipment and confined workspaces, enabling flexible installation.
  • Precision-engineered focus knob for quick calibration across diverse working scenarios.
  • Comprehensive industrial communication: TCP/UDP/Serial/Ethernet-IP/Modbus/Profinet/FTP/HTTP/MC/Fins for seamless PLC integration.
  • Machine learning algorithms reliably read damaged, low-contrast, curved, and high-density DPM codes despite surface contaminants.
  • Configurable with polarizers, diffusers, and multi-wavelength lighting to overcome ambient interference and material variations.
  • GigE/RS-232/485 and isolated I/O ports ensure robust device networking.
  • One-click parameter optimization simplifies deployment and reduces setup time.
  • Recognizes 7,000+ Chinese/English characters with the accuracy using OCR machine learning algorithms.
  • High-brightness LED crosshair precisely visualizes FOV for rapid alignment.

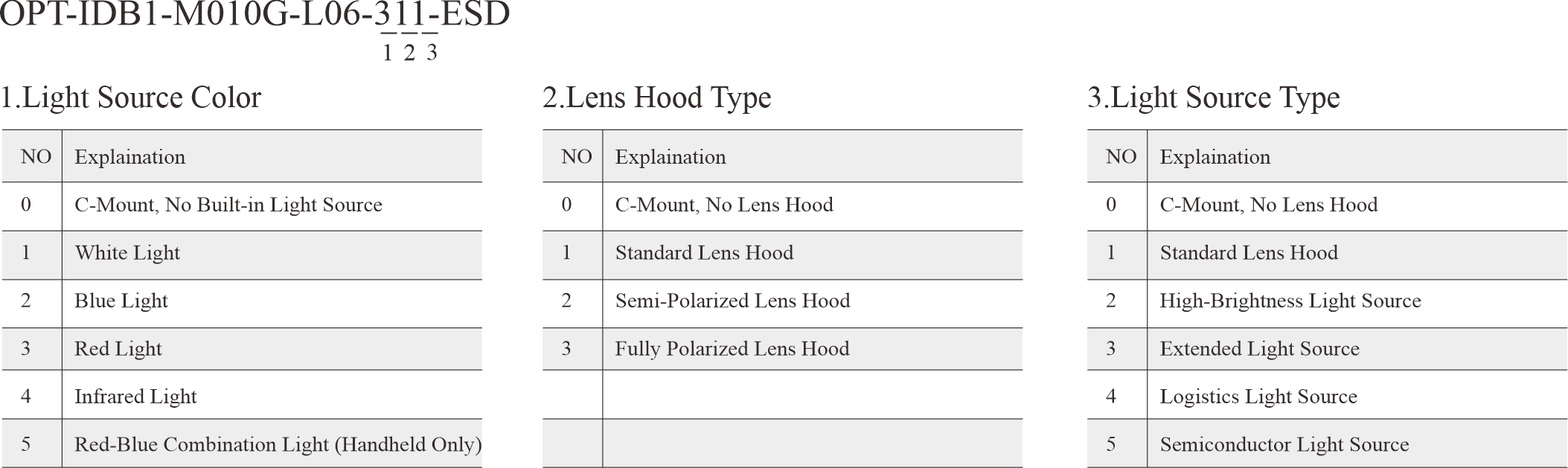

Selection Guide

OPT-IDB1 M010 G- L 06- 3 1 1- ESD
1 2 3 4 5 6 7
No. Symbolize Descriptions
1 Resolution(H×V）/(MP)  010: 1280 x 800（1MP）
 023: 1920 x 1200（2.3MP）
2 Sensor Type  G: CMOS, Global
3 Focal Length(mm)  06: 6.72mm
 25: 25mm
4 LED Light Color  1: White
 2: Blue
 3: Red
5 Lens Cover  1: Standard Lens Cover
 3: Full Polarizing Lens Cover
6 LED Light Type  1: Standard Light Source
7 Communication Interface  ESD: Ethernet port + Serial port + DIO
