Standard Light Source

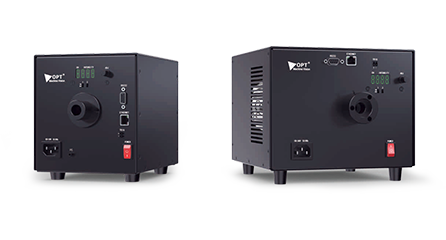

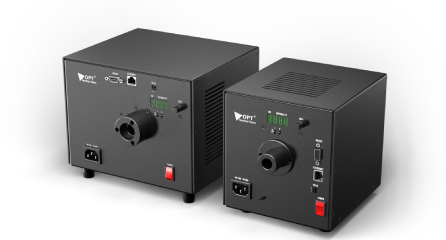

Digital Fiber Spot Lights-OPT-DOF Series
Introduction
Main Features
- Up to 4000k Lux @WD 20mm
- Integrated Light and Control Circuit Design
- Ethernet and RS232 Interfaces
- Application as a substitute for halogen lamps+ optical fibers

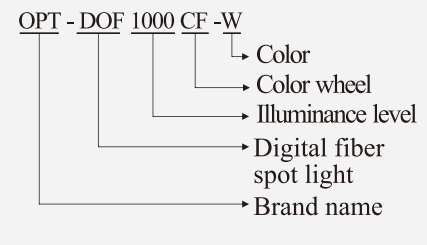

Selection Guide

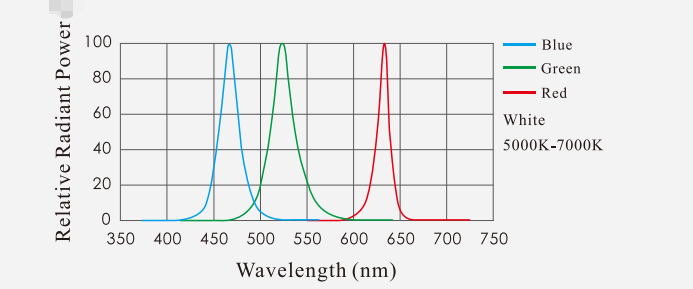

Spectrum Chart
Note: The Red, Green, Blue in the diagram refer to red, green, blue light of DOF100 and DOF1000.The data is for reference only.

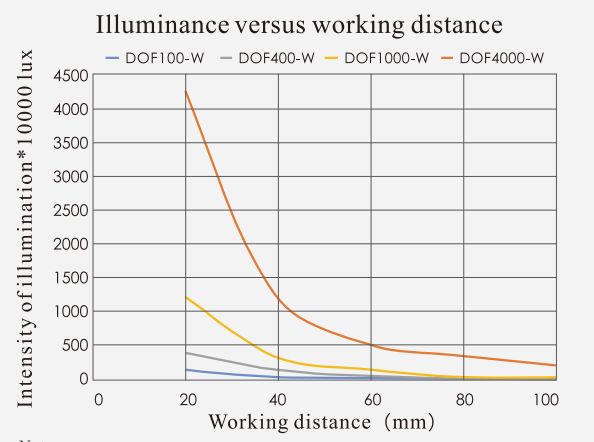

Series Features
Note:
At a working distance of 20mm:
DOF4000-W achieves an illuminance of over 40,000,000 lux
DOF1000-W achieves an illuminance of over 10,000,000 lux
DOF400-W achieves an illuminance of over 4,000,000 lux
DOF100-W achieves an illuminance of over 1,500,000 lux
Illuminance data measured using OPT 1-meter optical fiber, with a core diameter of 6.5mm, and brightness set to 255 for reference only.
Different light sources require matching optical fibers with different temperature resistance grades and should not be mixed.
