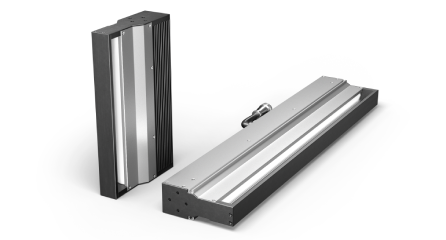

High Intensity Coaxial Line Scan Lights(OPT-LSSC/OPT-LSNLC Series)

Main Features

• LSSC is designed for high brightness, to meet the requirements of high-speed line scan inspection. LSNLC, with passive heat dissipation design, offers quiet stability and is suitable for environments with special requirements for noise, vibration, and airflow.
• Compatible with the inspection of both reflective and matt surfaces.
• Highly directional illumination

Selection Guide

Section Structure Drawing

Light Spot and Illuminance at Different WDs

Note:
1.Distance and width units: mm
   Illuminance unit: Klux
2.|lluminance values were measured using the following models:
OPT-LSSC272-W/B/G
OPT-LSNLC272-W/B/G
OPT-LSSC290-R
OPTLSNLC290-R
3.The above data are measured values and are provided for reference only.

Spectrum Chart

Note: The data is for reference only.
